Wholesale Price Angle Marking Machine - BS Series CNC Band Sawing Machine for Beams – FIN CNC Detail:

Product Parameters

NO Item Parameter
BS750 BS1000 BS1250
1 Dimension of H-beam sawing (section height × flange width) Min.200 mm×75 mm
Max.750 mm×450 mm
Min.200 mm×75 mm
Max.1000 mm×500 mm
Min.200 mm×75 mm
Max.1250 mm×600 mm
2 Sawing blade T:1.3mm W:41mm C:6650mm T:1.6mm W:54mm C:7600mm T:1.6mm W:54mm C:8300mm
3 Motor power Main motor 7.5KW 11KW
4 Hydraulic pump 2.2 kW
5 Cooling pump 0.12 kW
6 Wheel brush 0.12kW
7 Turntable 0.04 kW
8 Linear speed of saw blade 20~80 m/min
9 Cutting feed rate Stepless adjustment
10 Cutting Rotation angle 0°~45°
11 Table height About 800 mm
12 Main clamping hydraulic motor 80ml/r 160 ml/r
13 Front clamping hydraulic motor 80ml/r 160 ml/r
14 Machine dimensions
L*W*H
3640×2350×2400 mm 4000*2420*2610mm 4280*2420*2620mm
15 Main machine weight 5500KG 6000KG 6800KG

Details and advantages

1. The band saw blade rotates and adopts variable frequency stepless speed change, which can be adjusted conveniently according to different sawing materials.

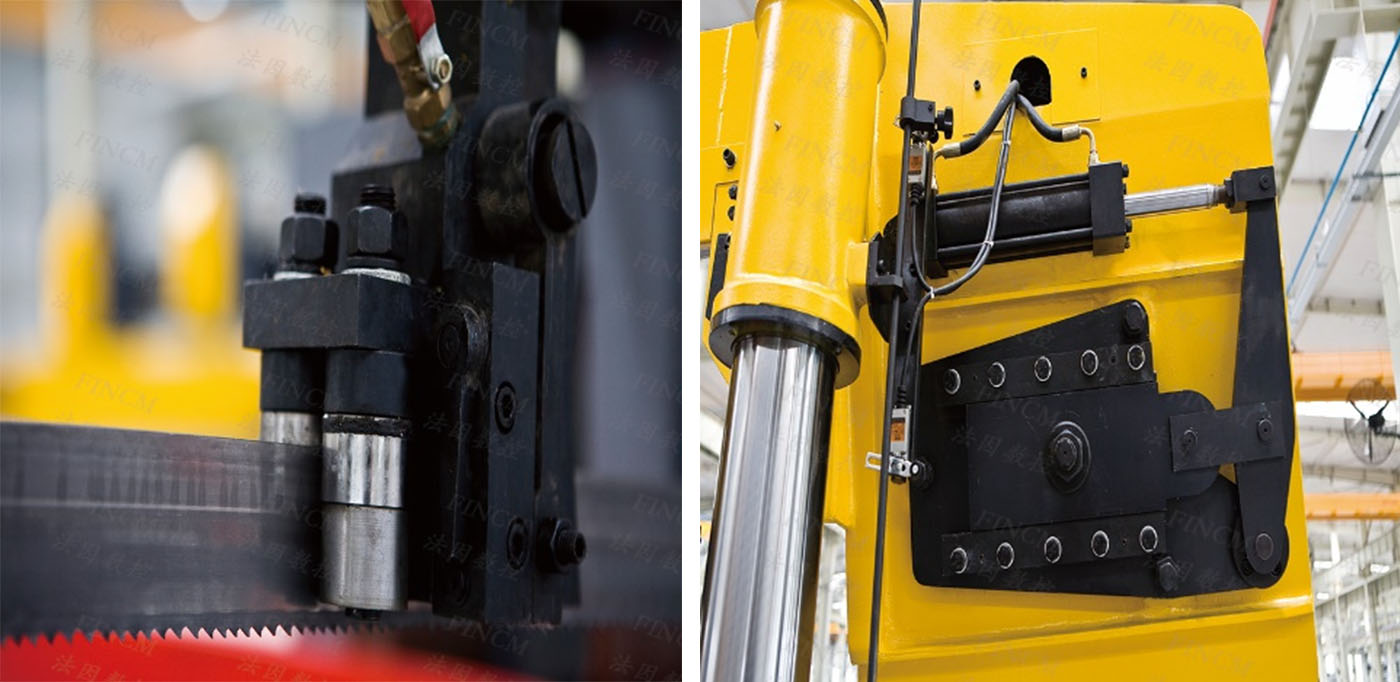

BS Series CNC Band Sawing Machine for Beams5

2. The sawing feed adopts hydraulic control to realize stepless feed.
3. The sawing blade feed adopts double column guide, with good rigidity, high precision and smooth sawing section.

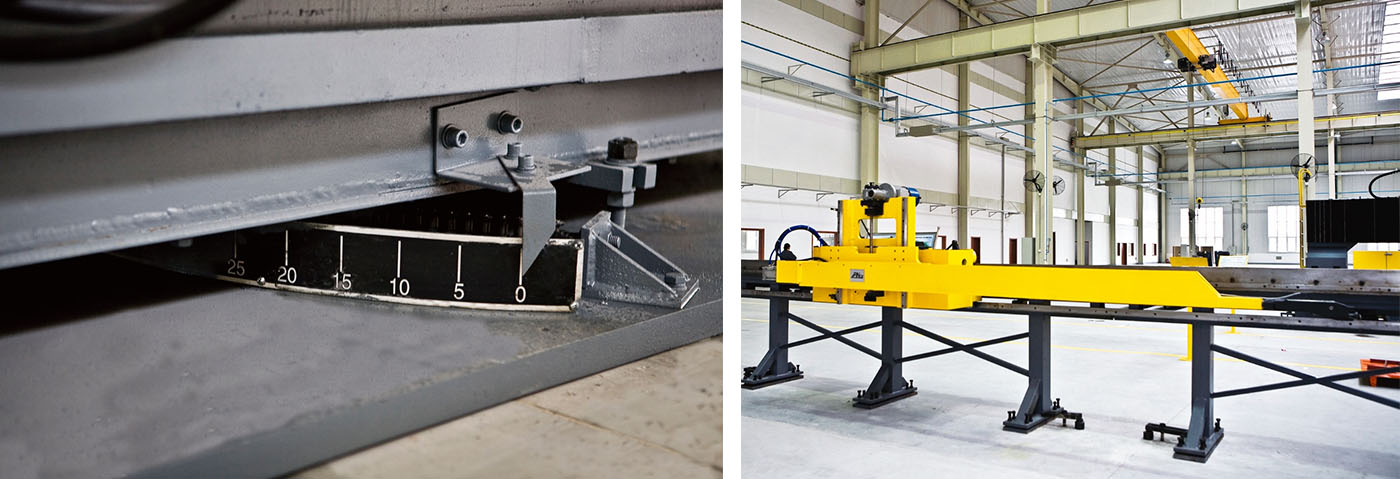

BS Series CNC Band Sawing Machine for Beams6

4. The band saw blade adopts hydraulic tension, which makes the saw blade maintain good tension in rapid movement, prolongs the service life of the saw blade, and effectively solves the problem of tension mutation.
5. There is a mechanism of sudden power-off and manual locking in the sawing process to prevent the saw frame from sliding down.
6. There is a set of manual fine adjustment device in front and back of the saw blade, which can accurately cut the head, middle and tail of the beam and improve the cutting accuracy.
7. It has the function of laser alignment, and can accurately locate the sawing position of Beam.
8. It has the function of turning the saw body from 0 ° to 45 °. The Beam doesn’t need to rotate, but the whole machine can complete the oblique cutting of any angle between 0 °and 45°.
9. The product can be combined with the SWZ series 3D drilling machine and BM series lock milling machine to form a flexible production line of secondary NC machining equipment for steel structure.

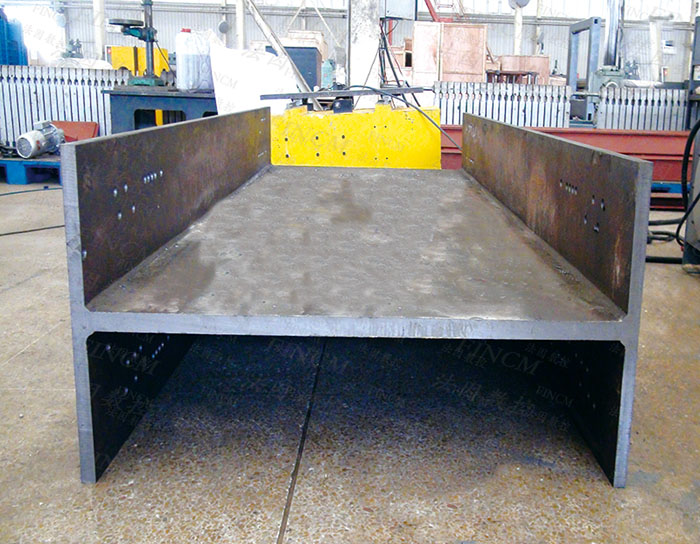

BS Series CNC Band Sawing Machine for Beams7

Key Outsourced Components List

NO

Name

Brand

Country

1

Frequency converter

INVT/INOVANCE

China

2

PLC

Mitsubishi

Japan

3

Solenoid hydraulic valve

Justmark

Taiwan, China

4

Hydraulic pump

Justmark

Taiwan, China

5

Speed control valve

ATOS

Italy

Note: The above is our standard supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
