Reliable Supplier China DJ1000C FINCM Vertical Cnc Metal Cutting Band Saw Machine

Product Application Introduction

Cnc Metal H beam Band Saw machine is used for sawing H-beam, channel steel and other similar profiles.
The program has many functions, such as processing program and parameter information, real-time data display and so on, which makes the processing process intelligent and automatic, and improves the sawing accuracy and work efficiency.

Service and guarantee

Send email to us

by SGS Group

Employees

299

R&D staffs

Patents

154

Software ownership (29)

Product Detail

Product process control

Clients and Partners

Company profiles

We are able to generally satisfy our respected clients with our very good quality, superior price and very good support due to we’ve been much more specialist and additional hard-working and do it in cost-effective way for Reliable Supplier China DJ1000C FINCM Vertical Cnc Metal Cutting Band Saw Machine, To significantly increase our service quality, our corporation imports a large number of overseas advanced devices. Welcome clientele from home and overseas to connect with and inquire!
We are able to generally satisfy our respected clients with our very good quality, superior price and very good support due to we’ve been much more specialist and additional hard-working and do it in cost-effective way for China Vertical Band Saw, Vertical Band Saw Machine, Only for accomplishing the good-quality product to meet customer’s demand, all of our goods have been strictly inspected before shipment. We always think about the question on the side of the customers, because you win, we win!

Product parameter

Series No.	Item name		Parameter
1	Dimension of H-beam sawing (without turning angle) Section height × Flange width (mm)		MAX.1000 mm×500 mm
2			MIN.200 mm×75 mm
3	Hacksaw blade		T:1.6mm W:54mm
4	Motor power	Main motor	11 kW
5	Motor power	Hydraulic pump	5.5kW
6	CNC Carriage	Servo motor power	5.0kW
7		Moving speed	0～20m/min
8		Maximum weight	10t
9	Linear speed of saw blade		20～100 m/min
10	Cutting feed rate		program control
11	Oblique cutting angle		0°～45°
12	Work Table height		800 mm
13	Main clamping hydraulic motor		100ml/r
14	Front clamping hydraulic motor		100ml/r
15	Overall dimension of main engine		About 4050x2300x2700mm
16	Spindle weight		About 8800kg

Details and advantages

1.CNC Metal Band Saw machine is mainly composed of CNC feeding car, main machine, hydraulic system, electrical system and pneumatic system

2.The saw frame has good rigidity and longest durability under the condition of high cutting load and blade tension.

DJ Product application description5

3.The saw frame adopts hydraulic servo proportional valve and encoder, which can realize digital feeding.

4.The machine tool has the main motor current detection function, when the motor overload operation, This sawing machine can use part reciprocating cutting function to prevent the saw from clamping.

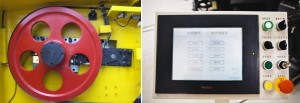

DJ Product application description6

5.The rotary table adopts frame structure, with good rigidity, strong stability and smooth sawing section.

6.The band saw blade adopts hydraulic tension, which can maintain good tension force in rapid movement, extending the service life of the saw blade.

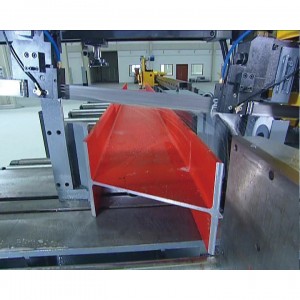

DJ Product application description3

7.Sawdust automatic cleaning system is equipped with a power rotary brush on the saw blade frame to automatically clean the iron chips that may stick to the saw blade after cutting.

8.The machine has the turning function of turning 0°～45°: the material does not move but the whole machine rotates, then 0 °～ 45° Any angle between them.

Key sourced components

NO.	Name	Band	Country
1	linear guide rail	HIWIN/CSK	Taiwan(China)
2	Hydraulic motor	Justmark	Taiwan(China)
3	Magnescale	SIKO	Germany
4	Hydraulic pump	Justmark	Taiwan(China)
5	Electromagnetic hydraulic valve	ATOS/YUKEN	Italy / Japan
6	Proportional valve	ATOS	Italy
7	Saw blade	LENOX/WIKUS	USA / Germany
8	Frequency converter	INVT/INOVANCE	China
9	Programmable controller	Mitsubishi	Japan
10	Servo motor	PANASONIC	Japan
11	Servo driver	PANASONIC	Japan
12	Touch screen	Panel	Taiwan(China)

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.We are able to generally satisfy our respected clients with our very good quality, superior price and very good support due to we’ve been much more specialist and additional hard-working and do it in cost-effective way for Reliable Supplier China DJ1000C Fincm Vertical Cnc Metal Cutting Band Saw Machine, To significantly increase our service quality, our corporation imports a large number of overseas advanced devices. Welcome clientele from home and overseas to connect with and inquire!
Reliable Supplier China Vertical Band Saw, Vertical Band Saw Machine, Only for accomplishing the good-quality product to meet customer’s demand, all of our goods have been strictly inspected before shipment. We always think about the question on the side of the customers, because you win, we win!
