PPD103B CNC Punching Drilling Machine For Steel Plate

Product Application Introduction

Mainly used for steel structure, tower manufacture, and construction industry.

Its’ main function is punching, drilling and tapping screws on steel plates or flat bars.

High machining accuracy, work efficiency and automation, especially suitable for versatile processing production.

Service and guarantee.


  • products details photo1
  • products details photo2
  • products details photo3
  • products details photo4
by SGS Group
Employees
299
R&D staffs
45
Patents
154
Software ownership (29)

Product Detail

Product Process Control

Clients and Partner

Company Profile

product parameters

NO.

Item

Parameters
1 Max punching force 1000KN
2 Max plate dimension 775*1500mm
3 The plate thickness 5-25mm
4 Max punching diameter φ25.5mm(16Mn,20mm thickness、Q235,25mm thickness)
5 Number of modules 3
6 The minimum distance from the hole to the edge 25mm
7 Max marking force 800KN
8 Number of characters and size 10(14*10mm)
9 Drilling diameter range(High-speed twist drill) φ16~φ50mm
10 Drilling spindle speed range (stepless speed change) 120~560r/min,5.5KW
11 Drilling spindle stroke 180mm
12 hydraulic feed(Hydraulic stepless speed cange) 20-200mm
13

The Precision

Angle steel joint connecting plate with any hole spacing Vertical ±0.5mm, horizontal ±0.5mm
Hole centerline sloped On the plate thickness ≤0.03t, and ≤2mm
Junction plate Any two sets of hole spacing ±1.0mm,

steel plate edge distance: ±1.0mm

14 Hydraulic pump motor power 15KW
15 X, Y axis servo motor power 2*2KW
16 Required compressed air pressure * displacement 0.5MPa*0.1m3/min
17 External dimensions 3100*3988*2720mm
18 Main machine weight 6500Kg

Details and advantages

1、With three die positions, three sets of dies can be installed to punch holes of three different diameters on the plate or only two sets of dies and one character box can be installed to punch holes of two different diameters and mar k characters.

CNC High Speed Drilling Machine of Sheet Metal3
CNC High Speed Drilling Machine of Sheet Metal6

2、The bed of heavy-type machine tool adopts high-quality steel plate welding structure. After welding, the surface is painted, So the surface quality and antirust ability of steel plate are improved.

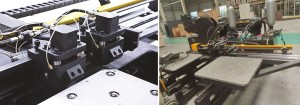

CNC High Speed Drilling Machine of Sheet Metal5

5、The NC Worktable of moving plate is directly fixed on the foundation, and the worktable is equipped with a universal conveying ball, which has the advantages of small resistance, low noise and easy maintenance.

微信图片_20210320095232
ppd103b4

6、The plate is clamped by two powerful hydraulic clamps, and it can be moved and positioned quickly

7、The computer adopts English interface, which is easy for general operators to master. It is easy to program.

Key Outsourced Components List

NO.

Item

Brand

Place of origin

1

AC servo motor

台达

Taiwan(China)

2

PLC

台达

3

Solenoid unloading valve

ATOS/YUKEN

Italy/

Taiwan(China)

4

Relief valve

ATOS/YUKEN

5

Solenoid reversing valve

JUSTMARK

Taiwan(Chine)

6

Junction plate

SMC/CKD

Japan

7

Air valve

SMC/CKD

8

air cylinder

SMC/CKD

9

Doublet

AIRTAC

Taiwan(China)

10

Computer

Lenovo

China

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
