PP123 Automatic CNC Hydraulic Punching Machine For Plates
|
NO. |
Item name |
Parameter |
|
1 |
Punching force |
1200KN |
|
2 |
Max process dimension |
1500×775mm |
|
3 |
Plate thickness |
5～25mm |
|
4 |
Number of punch and mark modulus |
3 |
|
5 |
Max punching diameter |
φ30mm For Q235 steel σb≤420MPa φ30×25mm (diameter* thickness) For Q420 steel σb≤680MPa φ30×25mm (diameter* thickness) |
|
6 |
Marking force |
1000KN |
|
7 |
Characters size： |
14×10mm |
|
8 |
Number of characters in a group |
16 |
|
9 |
Minimum hole margin |
25mm |
|
10 |
Number of clamp |
2 |
|
11 |
System pressure |
24 Mpa |
|
12 |
Low pressure |
5.5Mpa |
|
13 |
Air pressure |
0.5Mpa |
|
14 |
Hydraulic pump motor power |
22KW |
|
15 |
Number of CNC axis |
2 |
|
16 |
X、Y movable speed |
18 m/min |
|
17 |
X axis servo motor power |
2 KW |
|
18 |
Y axis servo motor power |
2KW |
|
19 |
Cooling method |
Water cooling |
|
20 |
Total power |
26KW |
|
21 |
Machine dimensions(L*W*H) |
3600*2800*1870mm |
|
22 |
Main machine weight |
7500kg |

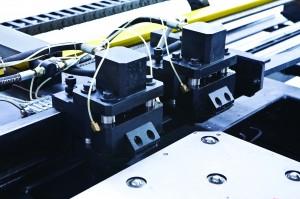

1. The PP123 CNC hydraulic punching machine has a punching force of up to 1200KN. It has three die positions and can be equipped with three sets of punching dies, or only two sets of punching dies and a character box. The die is easy to replace and the print is clear.
2. The bed of the heavy-duty machine adopts a high-quality steel plate welded structure. After welding, the surface is painted,
Thereby, the surface quality and anti-rust ability of the steel plate are improved. The bed welding parts are heat-aged to minimize welding stress. As a result, the reliability and durability of the machine are improved.
3. Both X and Y axis use precision linear guide rails, which have large load, high precision and long service life of the guide rails.
And can maintain the high precision of the machine for a long time.
4. Use the combination of centralized lubrication and distributed lubrication to lubricate the machine, so that the machine can be lubricated. Always in good working order.
5. The plate is clamped by two powerful hydraulic clamps and moves quickly for positioning. The clamp can be adjusted with the plate
Ups and downs, up and down. The distance between the two clamps can be adjusted arbitrarily according to the length of the plate clamping side.
6. The plate processing and positioning is fast, the operation is simple, the floor space is small, and the production efficiency is high.
|
NO |
Name |
Brand |
Country |
|
1 |
AC servo motor |
Delta |
Taiwan(China) |
|
2 |
PLC |
Delta |
|
|
3 |
Electromagnetic unloading valve |
ATOS/YUKEN |
Italy / Taiwan(China) |
|
4 |
Relief valve |
ATOS/YUKEN |
|
|
5 |
Electromagnetic directional valve |
JUSTMARK |
Taiwan(China) |
|
6 |
Bus bar |
SMC/CKD |
Japan |
|
7 |
Air valve |
SMC/CKD |
|
|
8 |
Cylinder |
SMC/CKD |
|
|
9 |
Duplex |
AIRTAC |
Taiwan(China) |
|
10 |
Computer |
Lenovo |
China |
Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
