Factory Price Truck Beams – PP1213A PP1009S CNC Hydraulic High speed Punching Machine for Truck Beam – FIN CNC Detail:

Product Parameters

NO. Item Parameter
PP1213A PP1009S
1 Punching Force 1200KN 1000KN
2 Maximum plate size 800×3500
800×7000mm(Secondary positioning)
3 Plate thickness range 4~12mm 4~12mm
4 Punch Station Module number 13mm 9mm(top 5, bottom 4)
Maximum punch diameter φ60 φ50
5 Punch size(mm) φ9, φ11, φ13, φ15, φ17, φ21, φ22, φ30, φ34, φ36, φ45, φ50, φ60
(A set of die with plate thickness of 8mm)
φ9, φ11, φ13, φ15, φ17, φ21, φ25, φ30, φ35 (including a set of die with plate thickness of 8mm)
6 Number of punches per minute 〉42 <42
7 Warpage extent <2mm <25
8 Number of clamps 3
9 System pressure High pressure 24MPa
Low pressure 6MPa
10 Air pressure 0.5MPa
11 Motor power of hydraulic pump 22kW
12 X-axis servo motor power 5kW
13 Y-axis servo motor power 5kW
14 Total capacity 55 kVA

Details and advantages

PP1213A5

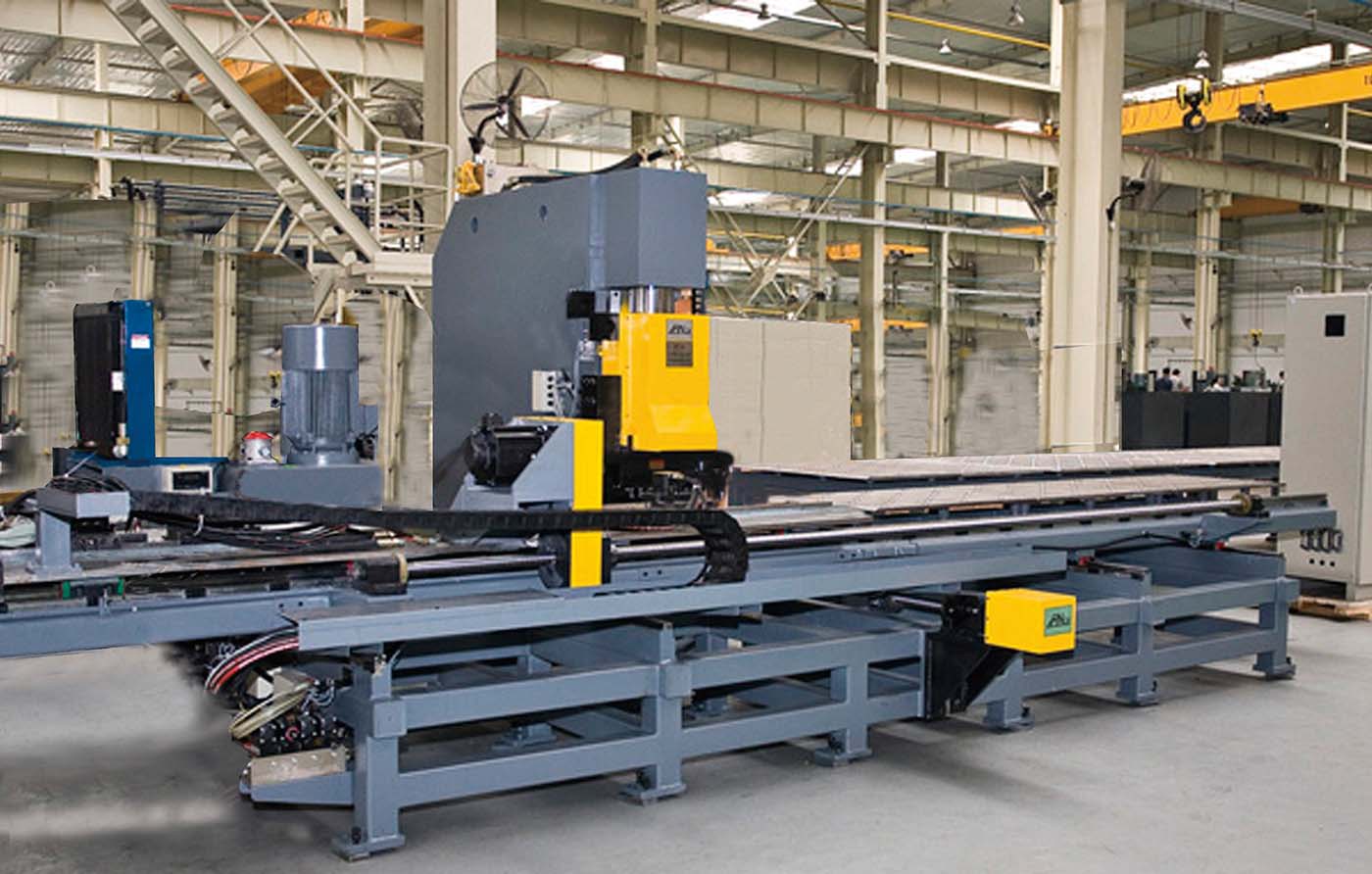

1. The machine bed of heavy load machine adopts high quality steel plate welding structure. After welding, the surface is painted, so as to improve the surface quality and antirust ability of steel plate. The welding parts of the lathe bed are heat aged to eliminate the welding stress to the maximum extent.

PP1213A6

2. The machine has two CNC axes: x-axis is the left and right movement of clamp, Y-axis is the front and rear movement of clamp, and the high rigidity CNC workbench ensures the reliability and accuracy of feeding.
3. X. Y drive shaft adopts precision ball screw to ensure transmission accuracy.
4. X and Y axes adopt precision linear guide rail, with large load, high precision, long service life of guide rail, and can keep high precision of machine for a long time.

PP1213A7

5.  The x-axis and y-axis drive motors are driven by German AC servo motors. Y-axis realizes semi-closed loop position feedback.
6. The machine is lubricated by the combination of centralized lubrication and decentralized lubrication, so that the machine is in good working condition every time.
7. The CNC Worktable of moving material directly fixed on the foundation, and the worktable is equipped with a universal conveying ball, which has the advantages of small resistance, low noise and easy maintenance.

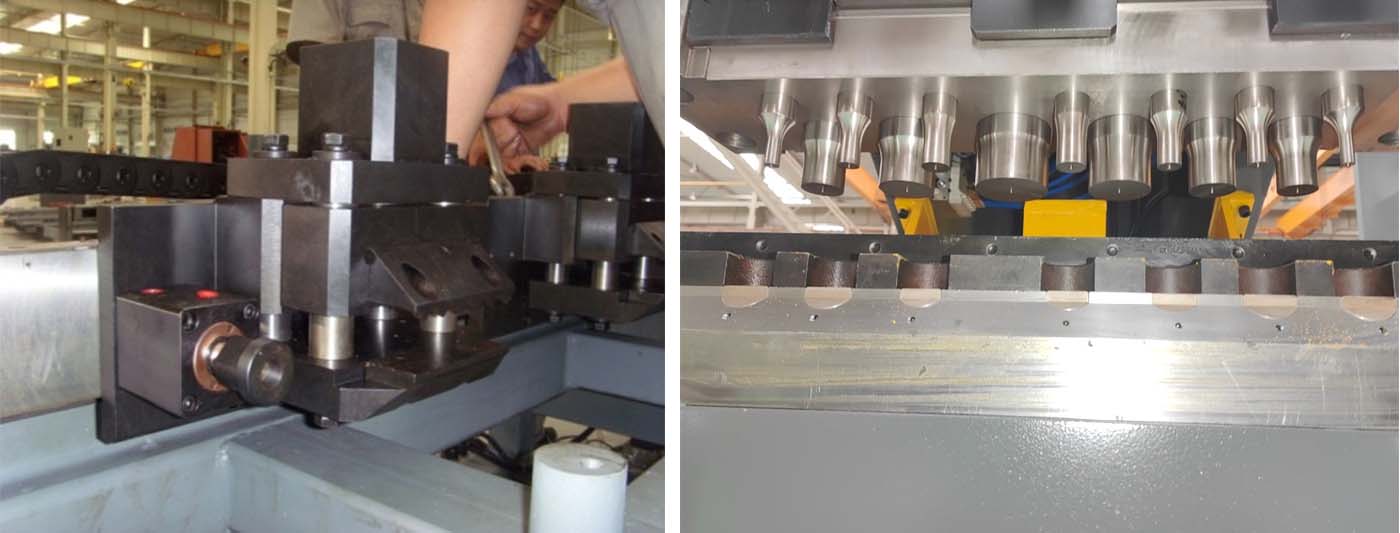

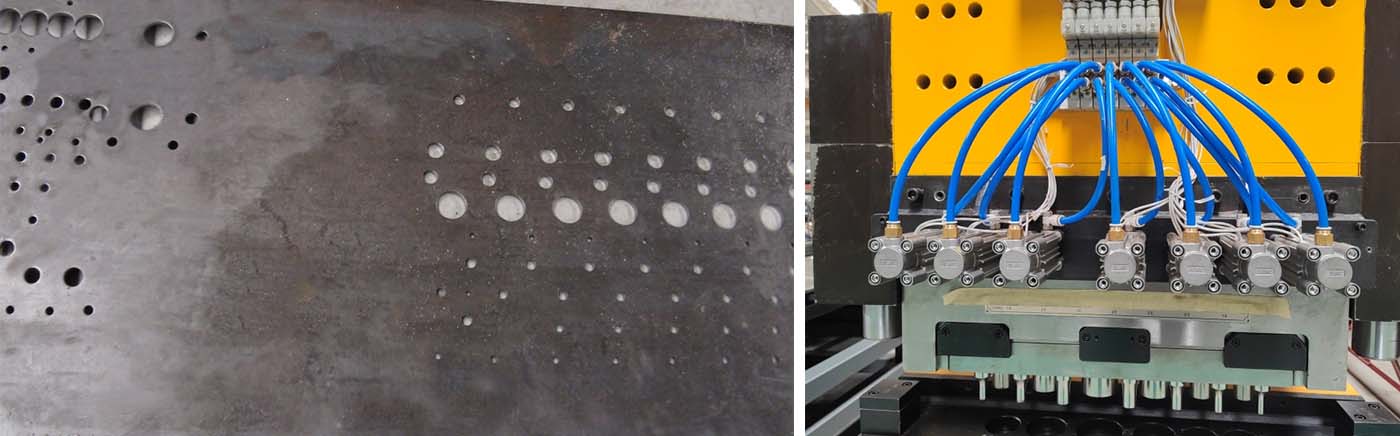

8. The punching die position of the machine adopts double row linear arrangement, and the maximum punching diameter is 50mm. The piston of the hydraulic cylinder drives the slide block guided by two linear rolling guides to move up and down, which ensures the accurate alignment of the die and the punch, and has long service life. The selection of punching die position adopts the way of cylinder pushing and pulling cushion block, which has the advantages of fast die changing, high reliability and convenient maintenance.
9. The material is clamped by three powerful hydraulic clamps, which can move and locate quickly. The clamp can float up and down with the fluctuation of the material. The distance between the clamps can be adjusted according to the length of the clamping edge of the material.

PP1213A8

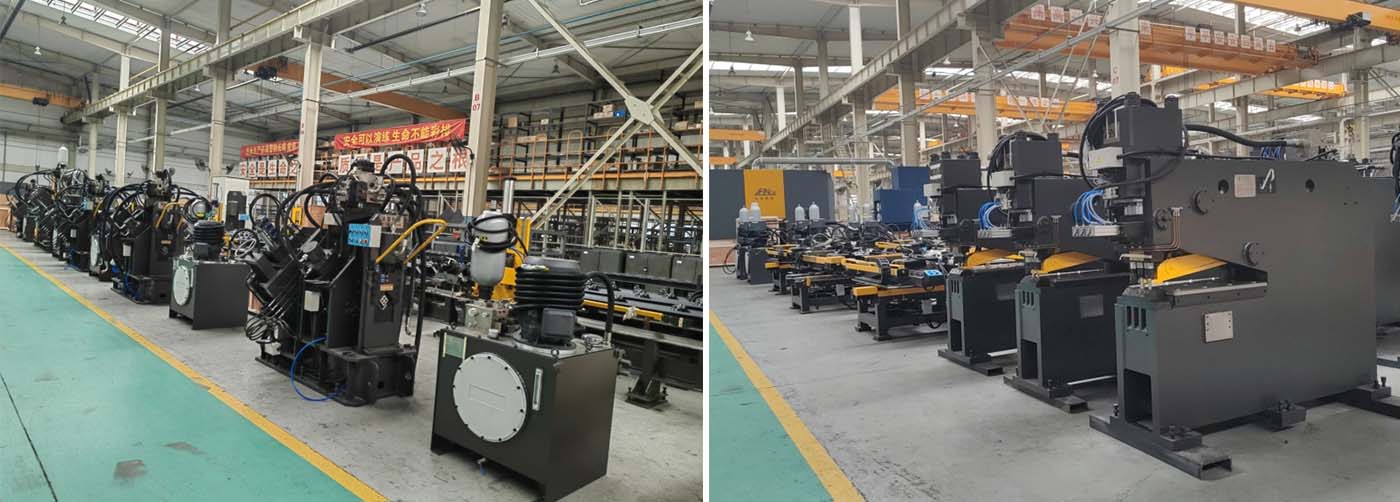

10. It has the advantages of short processing time, quick positioning, simple operation, less floor space and high production efficiency.
11. The interface of the computer is in English, which is easy for operators to master.

Key outsourced components list

NO

Name

Brand

Country

1

CNC system

Siemens 808D

Germany

2

Servo motor and Servo driver

Siemens / Panasonic

Germany/ Japan

3

Linear motion guide

HIWIN/PMI

Taiwan, Japan

4

Ball screw

I+F/NEEF

Germany

5

Cylinder

SMC/FESTO

Japan /Germany

6

Solid state relay

Weidmuller

Germany

7

Drag chain

Igus/CPS

Germany/ South Korea

8

Double vane pump

Denison/Albert

USA

9

Hydraulic valve

ATOS

Italy

10

Oil cooler

Tongfei/Laber

China

11

Oil lubrication device

Herg

Japan

12

Low voltage electrical components

Schneider

France

Note: The above is our standard supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
