China Gold Supplier for China Three Spindle 3D Beam and Channel Drilling Machine for Steel

Product Application Introduction

Three-dimensional CNC drilling machine production line is composed of Three-dimensional CNC drilling machine, feeding trolley and material channel.

It can be widely used in construction, bridge, power station boiler, three-dimensional garage, offshore oil well platform, tower mast and other steel structure industries,

It is especially suitable for H-beam, I-beam and channel steel in steel structure, with high precision and convenient operation.

Service and guarantee.

Send email to us

by SGS Group

Employees

299

R&D staffs

Patents

154

Software ownership (29)

Product Detail

Product Parameter control

Clients and Partners

Company Profile

To regularly increase the management program by virtue of your rule of “sincerely, good faith and quality are the base of business development”, we extensively absorb the essence of associated solutions internationally, and continuously create new solutions to satisfy the demands of customers for China Gold Supplier for China Three Spindle 3D Beam and Channel Drilling Machine for Steel, Our Company Core Principle: The prestige first ;The quality guarantee ;The customer are supreme.
To regularly increase the management program by virtue of your rule of “sincerely, good faith and quality are the base of business development”, we extensively absorb the essence of associated solutions internationally, and continuously create new solutions to satisfy the demands of customers for China Drilling Machine, Drilling Machine for Beams, We have exported our products all over the world, especially the USA and European countries. Furthermore, all of our products are manufactured with advanced equipment and strict QC procedures to ensure high quality.If you are interested in any of our products, please don’t hesitate to contact us. We will try our best to meet your needs.

Product Parameters

NO.	Parameter name				Unit	Parameter value	Remark
1	Scope of workpiece	Section steel			mm	150×75~1000×500
2		Thickness			mm	≤80
3		Length			m	15m	Configure according to customer demand
4		Short material limit			mm	Automatic processing≥3000
4		Short material limit			mm	Manual processing：690～3000
5	principal axis	Quantity				3
6		drill hole Range		Fixed side, mobile side	mm	￠12~￠26.5
6		drill hole Range		Intermediate unit	mm	￠12~￠33.5
7		Spindle speed			r/min	180~560
8		Change the card head quickly			/	Morse taper hole 3^#^、、4^#	Can change to 2^#
9		Axial stroke		Fixed side, mobile side	mm	140
9		Axial stroke		Intermediate unit	mm	325
10		Axial feed rate			mm/min	20~300
		Moving distance	Each spindle is in the direction of material length		mm	520
11			Both sides of the spindle in the up and down direction		mm	35～470	From the lower plane of the workpiece
12			The intermediate unit is in the direction of material width		mm	45～910	From the datum side
13	Cooling mode	Compressed air + cutting fluid			/	/
13	Cooling mode	Air pressure			Mpa	≥0.5
14	Machining accuracy	Error of adjacent hole spacing in hole group			mm	≤0.5
14	Machining accuracy	Feeding error within 10 m length			mm	≤1
15	Electric machinery power	Three phase asynchronous motor for spindle rotation			kW	4×3	Number of spindles 3
16		Intermediate unit X-axis servo motor			kW	1.0
17		Z-axis servo motor of intermediate unit			kW	1.5
18		Fixed side and mobile side X-axis servo motor			kW	1.0×2
19		Fixed side and mobile side Y-axis servo motor			kW	1.5×2
20		Moving carriage three phase asynchronous motor			kW	0.55
21		Over dimension			mm	About 4400×2400×3500
22	Weight				kg	About 6000

Details and advantages

Electrical system

1). PLC is used to control the positioning of each CNC axis, material detection and drilling and other machine actions. The PLC control system realizes high-speed processing and improves the response speed of the system.

2). The CNC feeding device (feeding trolley) adopts full closed loop control to ensure the feeding accuracy during long-distance feeding; other positioning CNC axes adopt semi-closed loop control to ensure the positioning accuracy and stability of the machine tool.

3). Real-time monitoring function.

4). A variety of material programming methods.

5). Graphic display function.

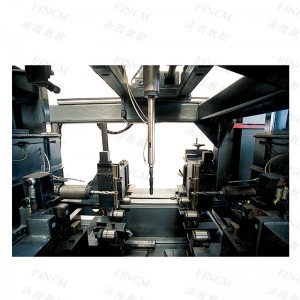

1. Three automatic control stroke drilling power heads are respectively installed on three NC slide blocks for horizontal and vertical drilling. The three drilling power heads can work independently or simultaneously.

2. The spindle speed of each drilling power head is controlled by frequency converter and stepless adjusted; the feed speed is stepless adjusted by speed regulating valve, which can be adjusted rapidly in a large range according to the material of material and diameter of drilling hole.

3. The material is fixed by hydraulic clamping mechanism.

部件2

4. The machine is equipped with the detection device of the width of the material and the height of the web, which can automatically compensate the machining error caused by the irregular outline of the material, and improve the machining accuracy.

5. The machine is equipped with an aerosol cooling system, which has the advantages of less coolant consumption, cost saving and less bit wear.

Key outsourced components

NO.	Name	Brand	Country
1	Linear guide rail	HIWIN/CSK	Taiwan (China)
2	Electromagnetic hydraulic valve	ATOS/YUKEN	Italy/Japan
3	Hydraulic pump	Just mark	Taiwan (China)
4	Servo motor	Panasonics	Japan
5	Servo driver	Panasonics	Japan
6	PLC	MITSUBISHI	Japan
7	Spray cooling pump	BIJUR	USA
8	Flexible extension nozzle	BIJUR	USA
9	Pneumatic solenoid valve	AIRTAC	Taiwan (China)
10	Centralized lubrication	HERG/BIJUR	Japan/USA
11	Computer	Lenovo	China

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter
