Product Parameters

Details and advantages

1. The main machine consists of marking unit, punching unit and shearing unit

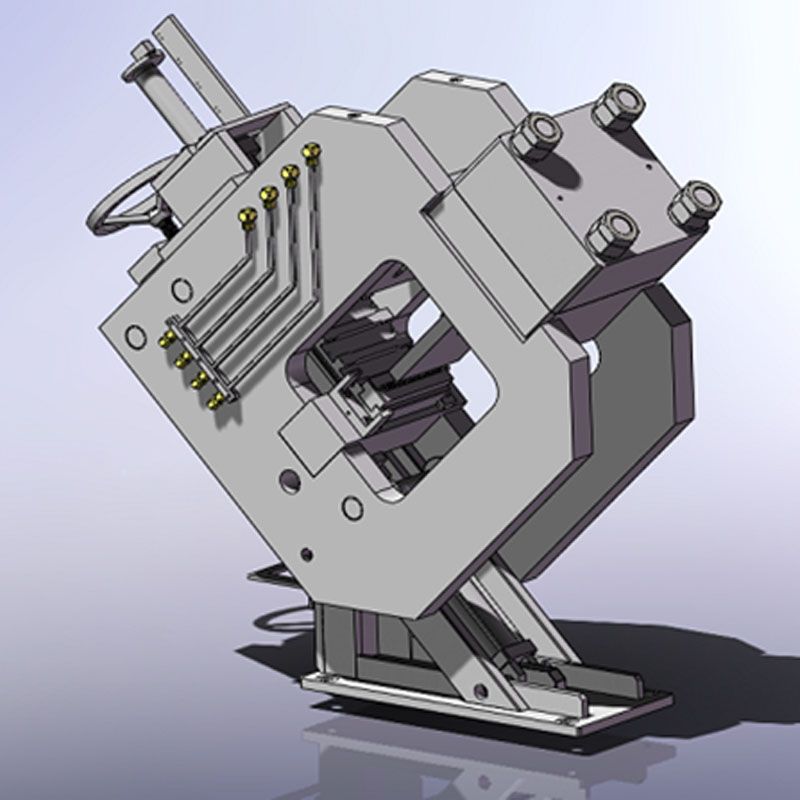

① The marking unit adopts a closed body. With four interchangeable characters cassette, each cassette can accommodate 10 characters; Channel steel material can only be marked on the web.

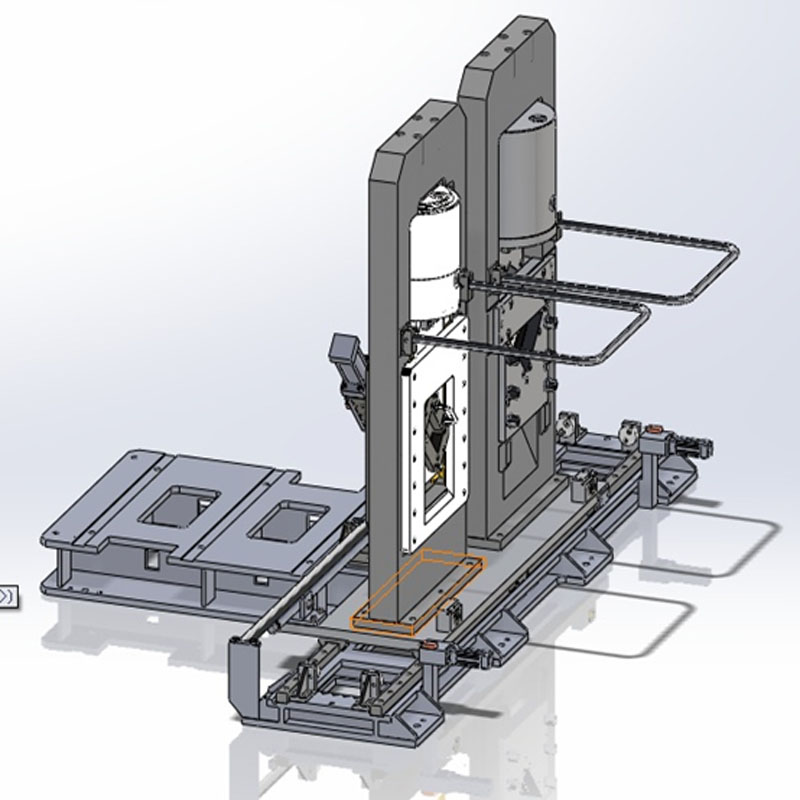

② The punching unit adopts a closed body, which can punch three holes with different diameters (round hole and oval hole) on the material.

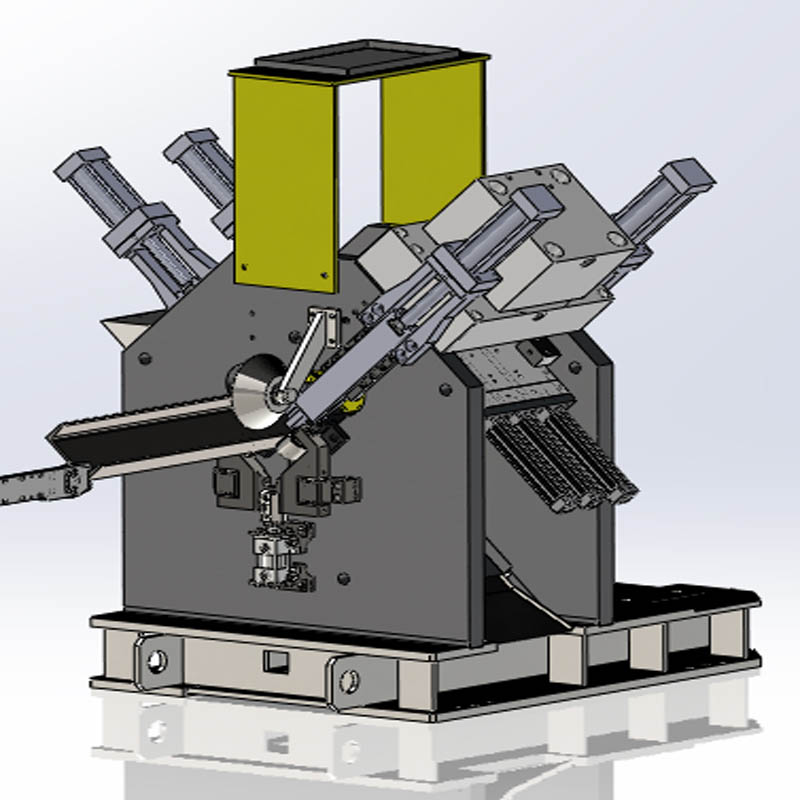

③ The shearing unit consists of two shearing device: flat bar shearing and channel shearing. Single blade cutting mechanism is adopted to ensure neat cutting section, convenient adjustment of cutting gap and material saving.

2. The material is clamped by pneumatic clamp and moves quickly for positioning. The material is driven by servo motor and driven by gear rack, with high positioning accuracy.

3. The cross transverse conveyor is composed of four chains with shifting blocks and frame body, and the chain is driven by motor through reducer.

4. The output conveyor is composed of conveyor and cylinder. After the finished material comes out of the main machine part, it is rotated and sent out of the production line.

5.  The machine has three CNC axes: the movement and positioning of the feeding trolley and the up & down movement and positioning of the punching tools.

6.  The computer programming is easy, and can display the material graphics and the coordinate size of the hole position, which is convenient for inspection. The upper computer management is adopted, which greatly facilitates the storage and call of the program; Graphic display; Fault diagnosis and remote communication.

7. Cooling mode of hydraulic power pack: water cooling or air cooling (optional).

Key outsourced components list

Note: The above is our standard supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
